DiscMat assignment 1

exercise

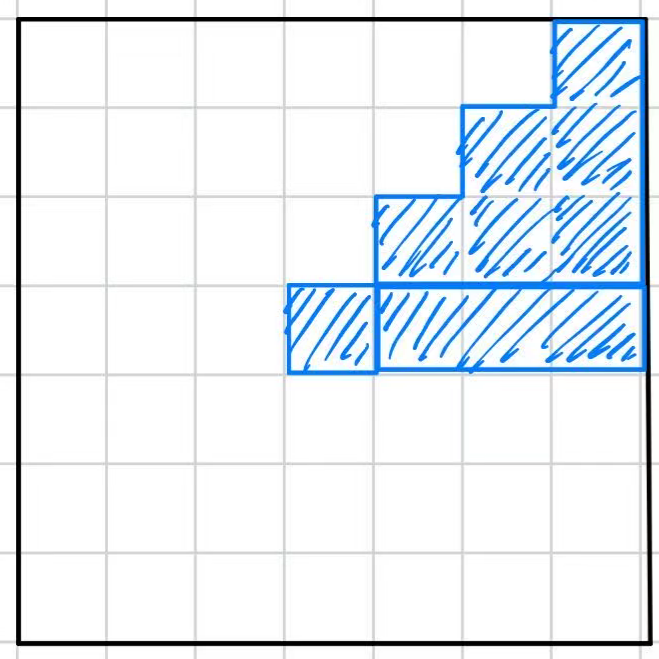

1.1 The Punctured Chessboard

1

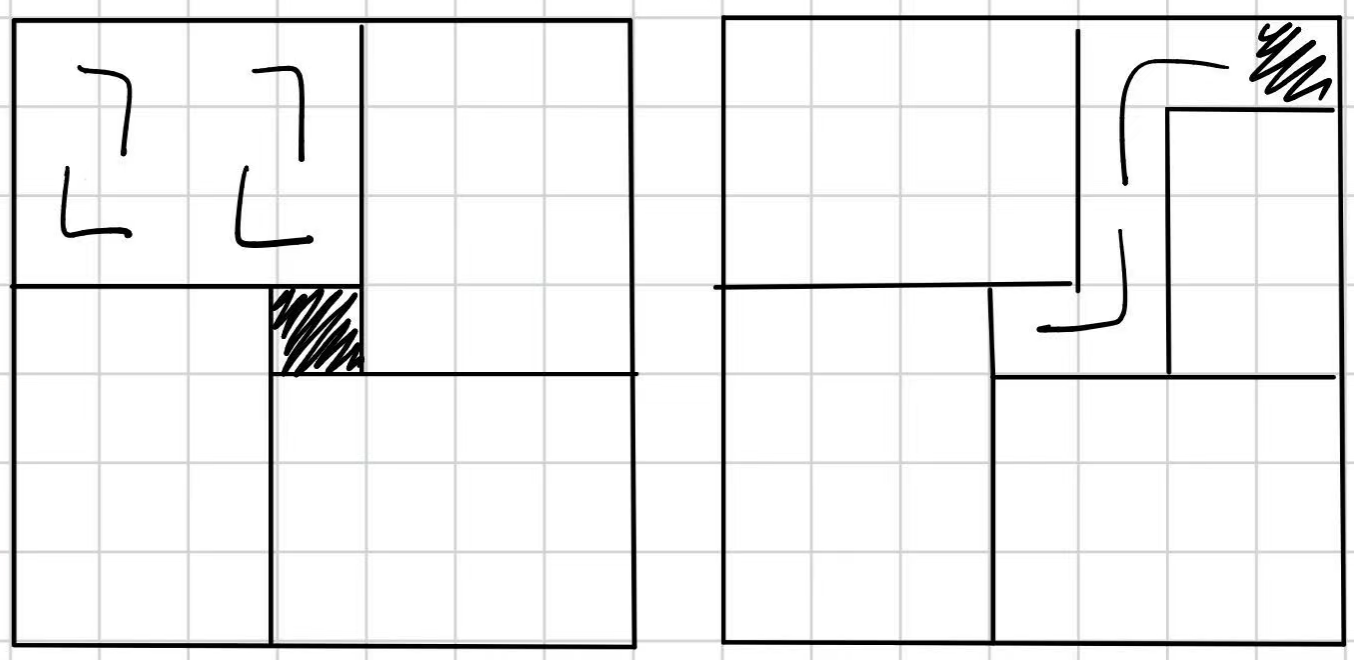

10 Cases

2

Note that 3*4 and 2*3 rectangles can always be filled will L shapes

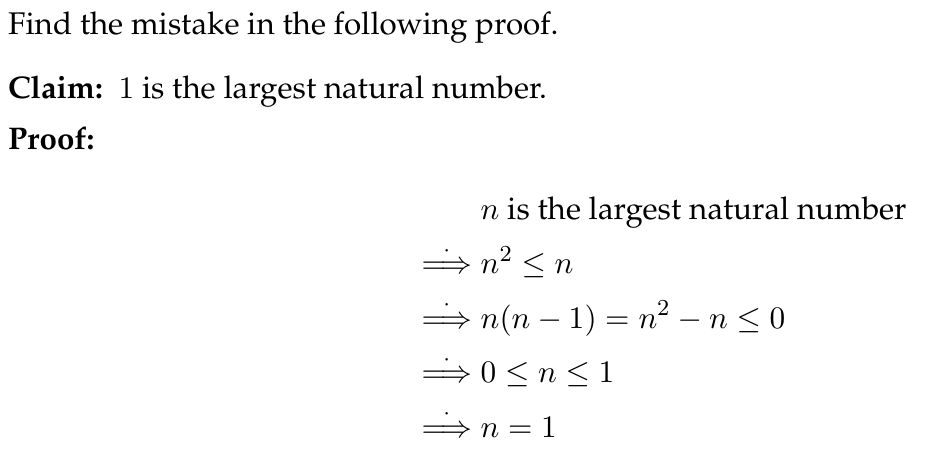

1.2 A False Proof

The initial assumption is false. The proof proves only “if a largest natural number exists, it must be 1”, but it does not prove that such a number exists.

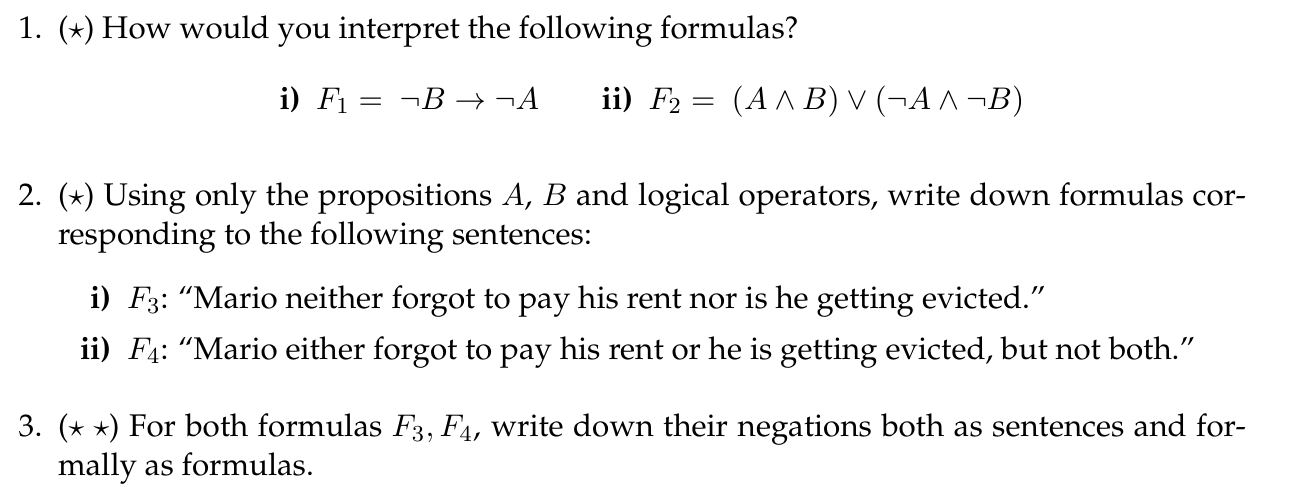

1.3 Interpreting Propositional Formulas in Natural Language

1.

• i) Mario remembered to pay his rent implies Mario is not getting evicted.
• ii) Either Mario forgot to pay his rent and is getting evicted or Mario remembered to pay his rent and is not getting evicted.

2.

• i) $\neg A\wedge \neg B$
• ii) $(A\vee B)\wedge \neg (A\wedge B)$

3.

• $F_3$ : $A\vee B$
  • Mario forgot to pay his rent or he is getting evicted (possibly both)
• $F_4$ : $(\neg A\wedge \neg B)\vee (A\wedge B)$
  • Either Mario did neither, or he did both.

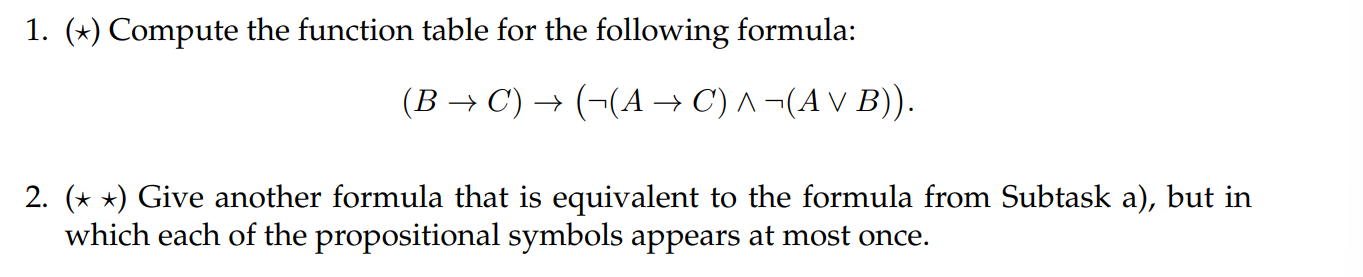

1.4 Logical Equivalence via Function Tables

1.

A	B	C	$(B\to C)\to (\neg (A\to C)\wedge \neg (A\vee B))$
0	0	0	0
0	0	1	0
0	1	0	1
0	1	1	0
1	0	0	0
1	0	1	0
1	1	0	1
1	1	1	0

2.

$$\neg C\wedge B$$

1.5 Two New Logical Operators

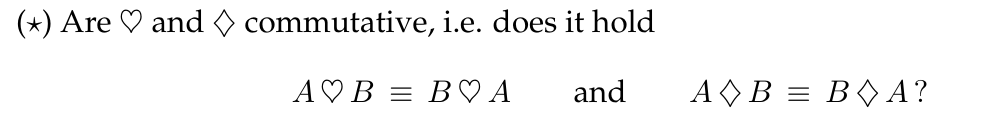

1.

We only need to consider the cases where $A\ne B$:

• $0♡1\ne 1♡0$
• $0♢1=1♢0$ $⟹$ ♡ is not commutative, ♢ is commutative

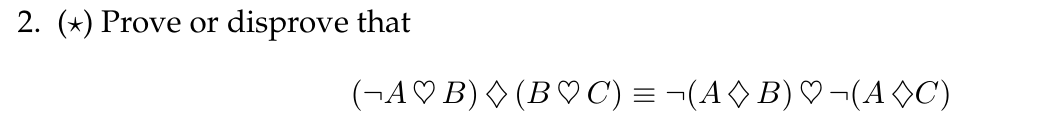

2.

A	B	C	(¬A♡B)♢(B♡C)	¬(A♢B)♡¬(A♢C)
0	0	0	1	1
0	0	1	1	0
0	1	0	1	1
0	1	1	0	1
1	0	0	0	1
1	0	1	0	1
1	1	0	1	0
1	1	1	0	1
Table (¬A♡B)♢(B♡C) and table ¬(A♢B)♡¬(A♢C) are different. The hypothesis is false

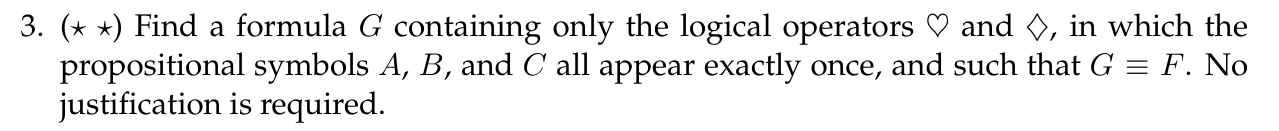

3.

B♡(A♢C)

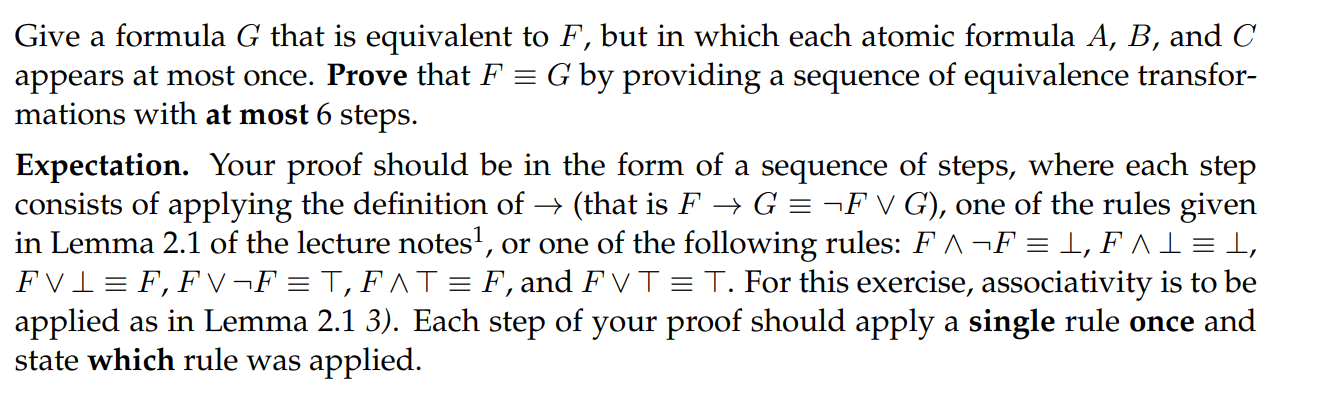

1.6 Simplifying a Formula

$$F=((\neg A\vee \neg B)\wedge \neg A)\wedge ((\neg B\wedge \neg A)\vee C)$$

• $F=\neg A\wedge ((\neg B\wedge \neg A)\vee C)$ : absorption from Lemma 2.1
• $F=(\neg A\wedge (\neg B\wedge \neg A))\vee (\neg A\wedge C)$ : first distributive law
• $F=((\neg B\wedge \neg A)\wedge \neg A)\vee (\neg A\wedge C)$ : commutativity
• $F=(\neg B\wedge (\neg A\wedge \neg A))\vee (\neg A\wedge C)$ : associativity
• $F=(\neg B\wedge \neg A)\vee (\neg A\wedge C)$ : idempotence
• $F=\neg A\wedge (\neg B\vee C)$ : idempotence
