Propositional Logic

Bausteine

• Symbole (A,B,C…) können Werte 0,1 annehmen
• Operatoren ($\neg ,\wedge ,\vee ,\to ,\leftrightarrow$) (nicht, und, oder, Implikation, Äquivalenz)
• Formeln Ausdrücke von Operation und Symbolen

A	B	$A\wedge B$	$A\vee B$	$A\to B$	$A\leftrightarrow B$
0	0	0	0	1	1
0	1	0	1	1	0
1	0	0	1	0	0
1	1	1	1	1	1

NOTE

$A\to B\equiv \neg A\vee B$ $F\equiv \top$ “F allgemeingültig” immer 1 $F\equiv \perp$ “F unerfüllbar” immer 0

Tautologie: immer 1 (or valid)

Definition

Logische Konsequenz: $F\models G$ if for all truth assignments to the propositional symbols appearing in F or G, the truth value of G is 1 if the truth value of F is 1.

Beobachtung: $(F\to Gallgemeing\ddot{u}ltig)\leftrightarrow (F\models G)$ Beispiel

A	B	$A\to B$	$A\wedge (A\to B)$	$(A\wedge (A\to B))\to B$
0	0	1	0	1
0	1	1	0	1
1	0	0	0	1
1	1	1	1	1
$⟹A\wedge (A\to B)\models B$

Modus Ponens

Ziel: Aussage $S$ Vorgehen:

1. Finde geeignete Aussage $R$
2. Beweise $R$
3. Beweise $R⟹S$

Falsches Beispiel

Theorem $1<0$ Beweise: $1>0⟹2<1$ (+1 beide Seite) $⟹2>1$ (*1, weil 1 negativ ist)

Man sollte anders um beweisen, vom Wahres anfangen It’s crucial not to confuse the direction of implication. Proving S⟹R and R is true does not imply that S is true.

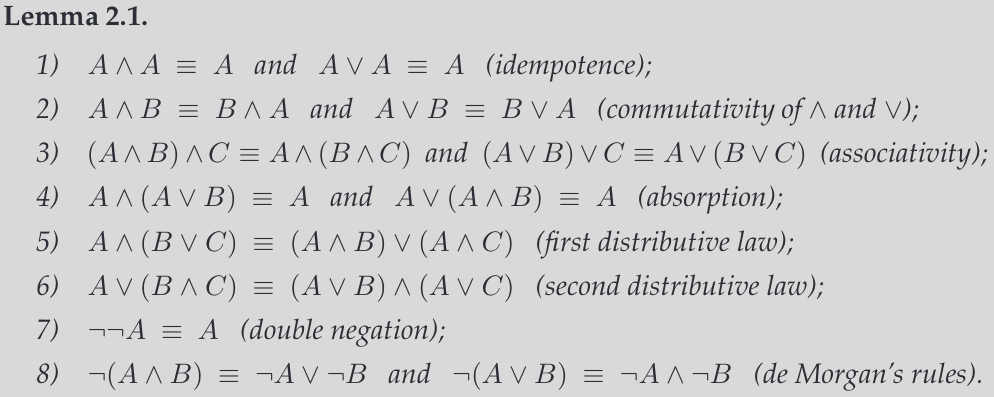

Lemma 2.1

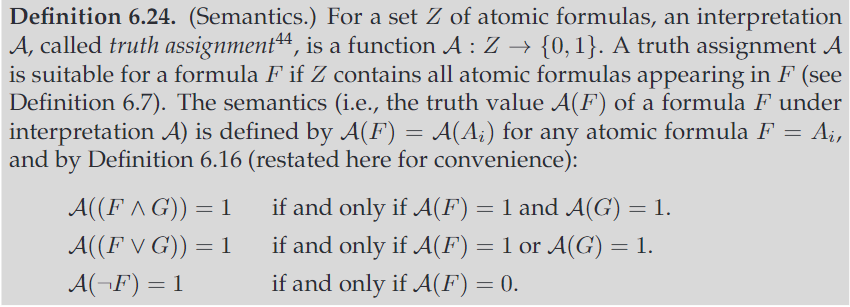

Semantics

Definition: Literal

A literal is an atomic formula or the negation of an atomic formula. For example: $L$ or $\neg L$

Definition: Clause

A clause is a set of literals.

CNF & DNF

CNF (Conjunctive Normal Form) A Boolean formula is in CNF if it is an AND ($\wedge$) of clauses, where each clause is an OR ($\vee$) of literals (a variable or its negation).

• Shape: where truth table has 0

$$({\ell }_{11}\vee {\ell }_{12}\vee \cdots )\wedge ({\ell }_{21}\vee {\ell }_{22}\vee \cdots )\wedge \cdots$$

• Example:

$$(x\vee \neg y\vee z)\wedge (\neg x\vee y)\wedge (y\vee \neg z)$$

• Typical use: SAT solvers (SAT is usually given as CNF).

---

DNF (Disjunctive Normal Form) A Boolean formula is in DNF if it is an OR ($\vee$) of terms, where each term is an AND ($\wedge$) of literals.

• Shape: where truth table has 1

$$({\ell }_{11}\wedge {\ell }_{12}\wedge \cdots )\vee ({\ell }_{21}\wedge {\ell }_{22}\wedge \cdots )\vee \cdots$$

• Example:

$$(x\wedge \neg y)\vee (\neg x\wedge z)\vee (y\wedge \neg z)$$

• Typical use: Representing a function as “one of these cases holds” (Normal Forms).

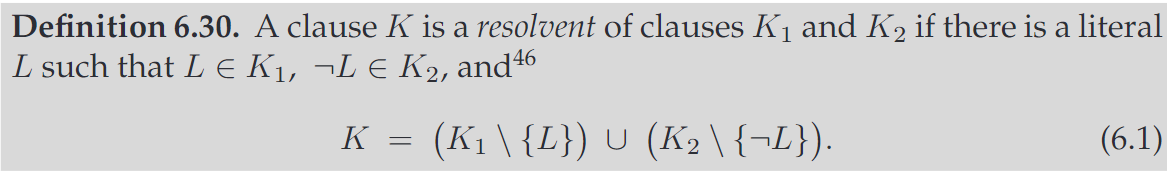

Resolution Calculus

This calculus is rule is written as $\{K_1,K_2\}{⊢}_{res}K$ The resolution calculus contains only this one rule, $\mathrm{Re}s=\{res\}$

Warning

It is important to point out that resolution steps must be carried out one by one
