A&D assignment 10

exercise

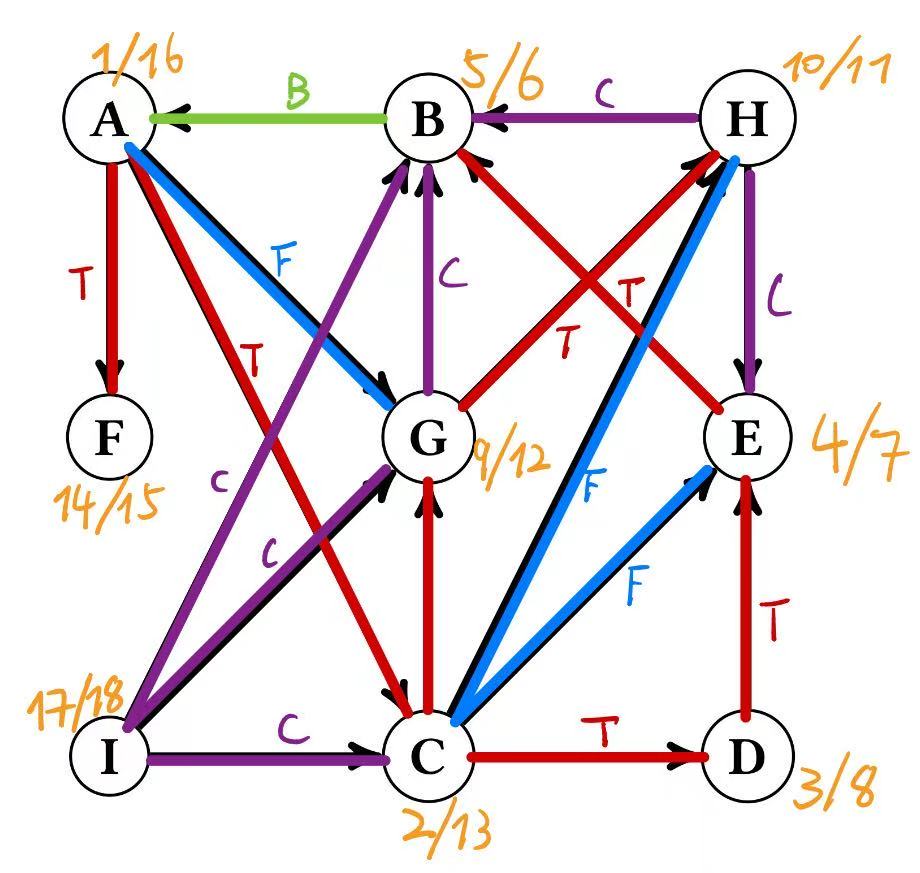

10.1 Depth-first search

a) b) d)

c)

Pre: $ACDEBGHFI$ Post: $BEDHGCFAI$

e)

No, we can find a cycle by using a backward edge. Let backward connects $v,u$ , there must exists a path from $u$ to $v$ inside the tree, together with the backward edge, a cycle is formed. In the example above, a backward edge $(B,A)$ exists, so we can find the cycle $(A,C,D,E,B)$

f)

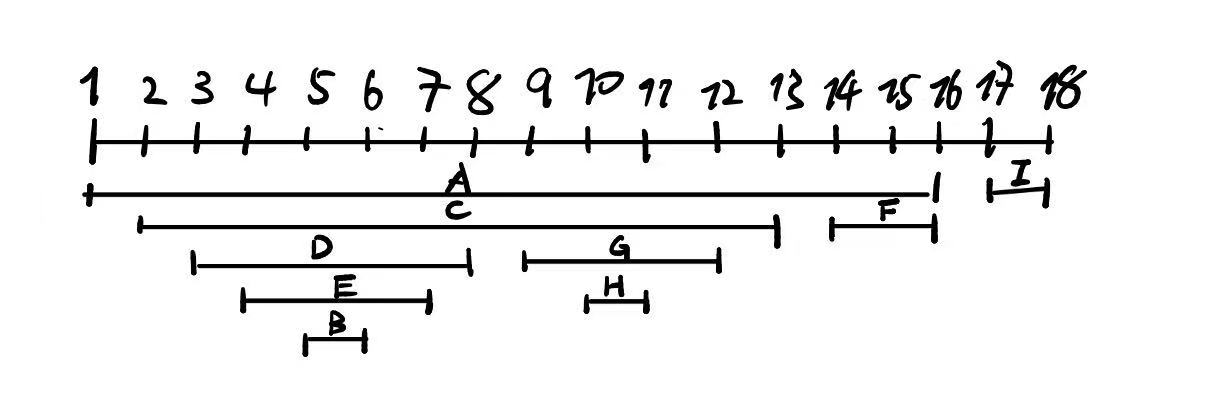

If $I_u\subset I_v$ then there exists a path from $v$ to $u$ in the DFS-tree

g)

If edge $(B,A)$ is removed and $(F,I)$ is added, then: The new pre/post numbers: $F:$ 14/17 $I:$ 15/16 $A:$ 1/18

Now the graph has a topological ordering: AFICGHDEB If we sort the vertices by pre-number, we do not get a topological sorting

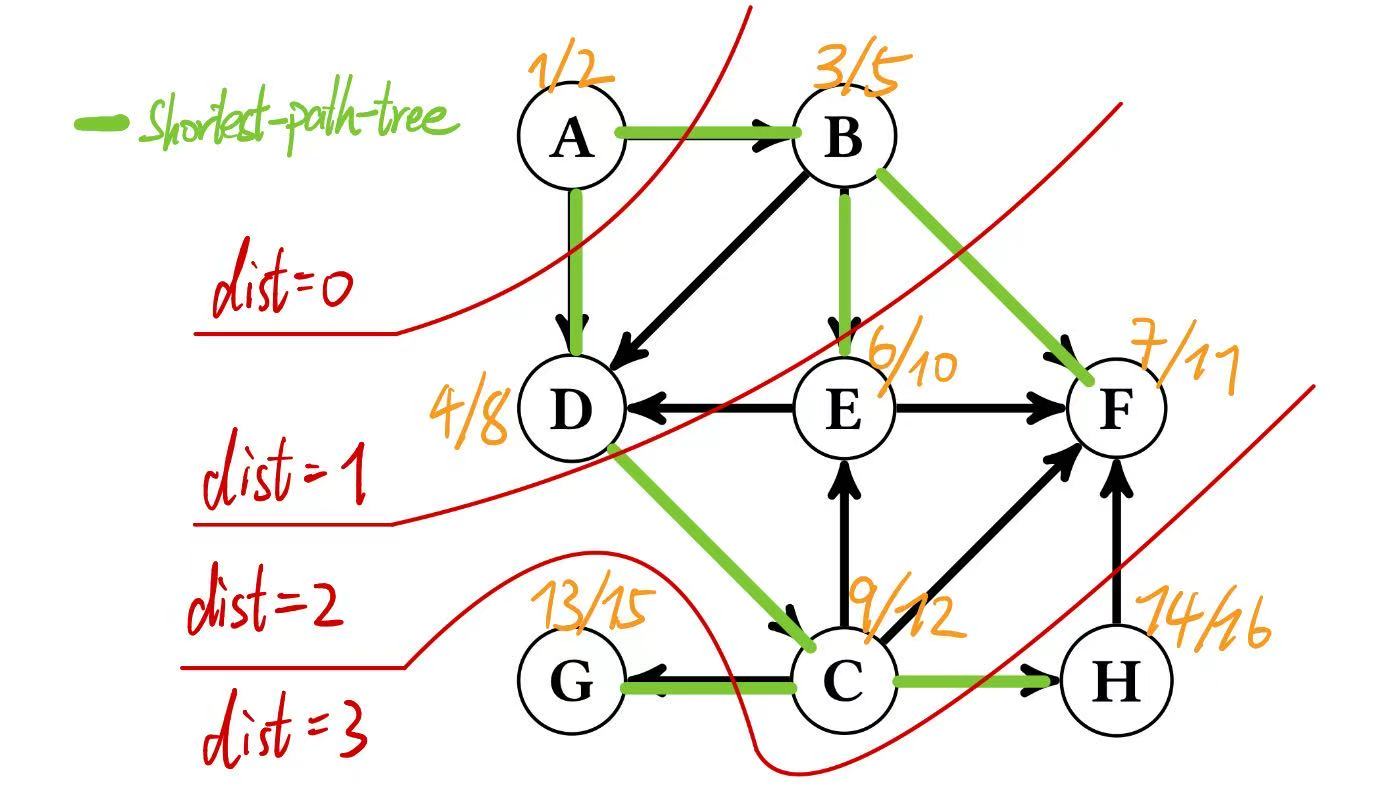

10.2 Breadth-First Search

a)

$ABDEFCGH$

b) c) d)

10.5 Strongly connected vertices

Use a DFS. While running DFS, look for a back edge. Any back edge $u\to v$ with $v$ an ancestor of $u$ immediately gives a strongly connected pair $(u,v)$

status[1...n]=-1 //-1:unvisited 0:in stack 1:visted

function DFS(u):
 status[u] = 0
 for each v in Adj[u] do
 if status[v] = -1 then
 pair = DFS(v)
 if pair ≠ null then
 return pair
 else if status[v] = 0 then // found back edge v -> u
 return (u, v)
 status[u] = 1
 return null

// main
for v = 1 to n do
 if status[v] = -1 then
 pair = DFS(v)
 if pair ≠ null then
 output pair
 halt
output "no such pair exists"
