A&D assignment 4

exercise

4.1 Applying the master theorem

a) $a=4,b=1$ $1<{\log }_{2}4=2$ According to the third case of the master theorem $T(n)\le O(n^{{\log }_{2}4})\le O(n^2)$

b) $a=1,b=1$ $1>{\log }_{2}1=0$ According to the first case of the master theorem $T(n)\le O(n)$

c) $a=4,b=2$ $2={\log }_{2}4=2$ According to the second case of the master theorem $T(n)\le O(n^{{\log }_{2}4}\log n)\le O(n^2\log n)$

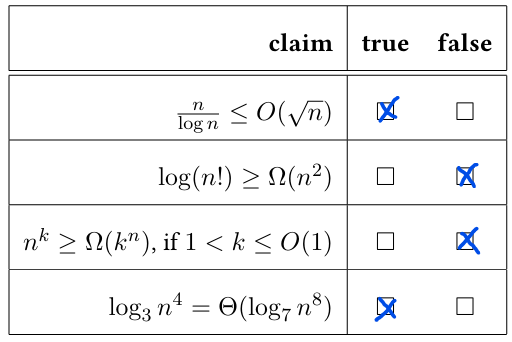

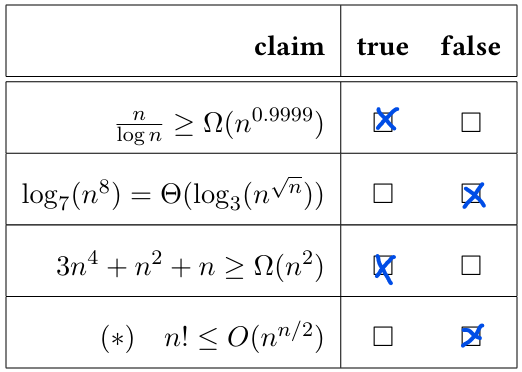

4.2 Asymptotic notations

a) b)

4.3 One-Looped Sort

a)

Iteration	i after iteration	A
1	1	[10, 20, 30, 40, 50, 25]
2	2	[10, 20, 30, 40, 50, 25]
3	3	[10, 20, 30, 40, 50, 25]
4	4	[10, 20, 30, 40, 50, 25]
5	5	[10, 20, 30, 40, 50, 25]
6	4	[10, 20, 30, 40, 25, 50]
7	3	[10, 20, 30, 25, 40, 50]
8	2	[10, 20, 25, 30, 40, 50]
9	3	[10, 20, 25, 30, 40, 50]
10	4	[10, 20, 25, 30, 40, 50]
11	5	[10, 20, 25, 30, 40, 50]
12	6	[10, 20, 25, 30, 40, 50]
b)
Invariant: At the moment when the variable $i$ gets incremented to a new value $i=k$ for the first time, the first k elements of the array are sorted in increasing order.
Base: $k=1$, The first one element (or $A[0]$) is always sorted
IS: $k\to k+1$

• If $A[k]\ge A[k-1]$, then the first $k$ elements $A[0\dots k-1]$ are already sorted. Then $i$ is incremented to $k+1$, so that the next new position will be inspected.
• If $A[k]<A[k-1]$, then the algorithm swaps $A[k]$ and $A[k+1]$ and $i$ is set to $i-1$. This step repeatedly moves the current unsorted element to the left, until it gets to the right position. After the element gets to the right position, the first $k$ elements $A[0\dots k-1]$ are sorted. $i$ will then be continuously incremented until it meets a new value $i=k+1$, so that the next new position will be inspected. By induction, every time $i$ is increased to k, $A[0\dots k-1]$ is sorted.

c) $O(n^2)$

4.4 Searching for the summit

a)

---

$B[0]\leftarrow -\infty$ $B[1\dots n]\leftarrow A[1\dots n]$ $B[n+1]\leftarrow -\infty$ while $l\le r$ do: $m\leftarrow \lfloor \frac{l+r}{2}\rfloor$ if $B[m]>B[m+1]\text{ and }B[m]>B[m-1]$ then return $m$ else if $B[m-1]<B[m]<B[m+1]$ \qquad$$l\leftarrow m+1 else \qquad$$r\leftarrow m-1 return -1

---

The code uses binary search to find the summit. In each iteration the search space for the summit is halved. Thus, we must have the worst-case running time $O(\log n)$

b) Again, we can first find the summit $k$ in $O(\log n)$ time. Then we use binary search to try to find $x$ in the sorted array $A[1\dots k]$, which takes $O(\log n)$ time. If we don’t find $x$ in the first part of the array, we then perform binary search on the second part $A[k+1\dots n]$, which is also sorted and also takes $O(\log n)$ time. Since each step requires at most $O(\log n)$ time, the worst-case running time of our algorithm is $O(\log n)$.

4.5 Counting function calls in loops

a) $T(n)=\frac{(\lfloor {\log }_{2}n\rfloor +1)\lfloor {\log }_{2}n\rfloor }{2}$ $\Theta ((\log n{)}^2)$

b) $T(n)=4\cdot 2T\left(\frac{n}{2}\right)+n^2\cdot 2n=8T\left(\frac{n}{2}\right)+2n^3$ According to the Master Theorem, $T(n)=\Theta (n^3\log n)$
