A&D assignment 8

exercise

8.1 Party & Beer & Party & Beer

We first model the party as an undirected graph where vertices are people and edges represent “knowing each other.” The problem states that every person knows exactly 7 others. Therefore every vertex has degree 7. By the Handshaking Lemma ${\sum }_{u\in V}deg(u)=2\cdot |E|$ The left side equals $7\cdot |V|$, which must be even. Since $7$ is odd, $|V|$ (or the number of people) must be even.

8.3 Graph connectivity

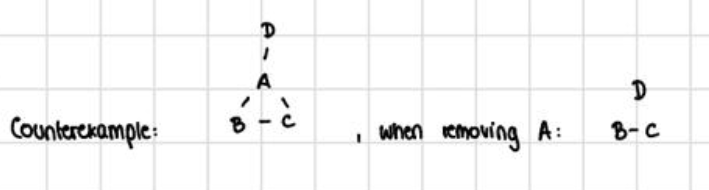

a) Claim: If a vertex v is part of a cycle, then it is not a cut vertex. The claim is disproved

b)Claim: If a vertex v is not a cut vertex, then v must be part of a cycle. Let a graph contains two vertices $a,b$ that are connected. Both of them are not cut vertices, are they are not in a cycle. The claim is disproved

c)Claim: If an edge e is part of a cycle (i.e. e connects two consecutive vertices in a cycle), then it is not a cut edge. Let a cycle be $(v_1,v_2,\dots v_k,v_{k+1})$, where $v_{k+1}=v_1$. Let $e=\{v_i,v_{i+1}\}$ , If we are to remove $e$, then there still exists a walk $(v_{i+1},\dots v_k,v_1,\dots v_i)$ So the remaining graph is still connected. Therefore, $e$ is not a cut edge. The claim is proved

d)Claim: If an edge e is not a cut edge, then e must be part of a cycle. Assume $e=\{v,u\}$ is not a cut edge. Then removing it does not disconnect the graph, so there is still a path between $u$ and $v$. Now we add back the edge $e$, the path $(u,\dots ,v)$ and $(v,u)$ forms together a cycle. Therefore $e$ must lie on a cycle. The claim is proved.

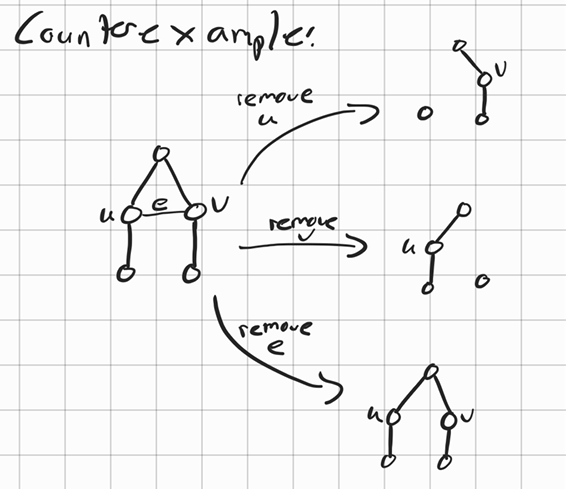

e)Claim: If u and v are two adjacent cut vertices, then the edge e = {u,v} is a cut edge. As shown, u and v are cut vertices but e is not a cut edge. The claim is disproved.

f)Claim: If e = {u,v} is a cut edge, then u and v are cut vertices. Let a graph contains two vertices $u,v$ that are connected through an edge $e=\{u,v\}$. $e$ is a cut edge, but $u$ and $v$ are not cut vertices. The claim is disproved. Claim: If e = {u,v} is a cut edge and u and v have degree at least 2, then u and v are cut vertices.

Deleting $e$ separates the graph into exactly two components, say $A$ containing $u$ and $B$ containing $v$. Since $deg(u)\ge 2$, $u$ has at least one neighbor $x$ ($x\ne v$) that lies in component $A$. But every vertex in $B$ is now disconnected from $x$ when $u$ is removed, because any path from $x$ to a vertex in $B$ must go through $u\to v$ using the edge $e$, and that edge is gone. Thus removing $u$ disconnects the graph. So $u$ is a cut vertex. By symmetry, the same argument shows that $v$ is also a cut vertex. The claim is proved.
