Finding Cut Vertices and Bridges

Note: a bridge is a cut edge

Using DFS

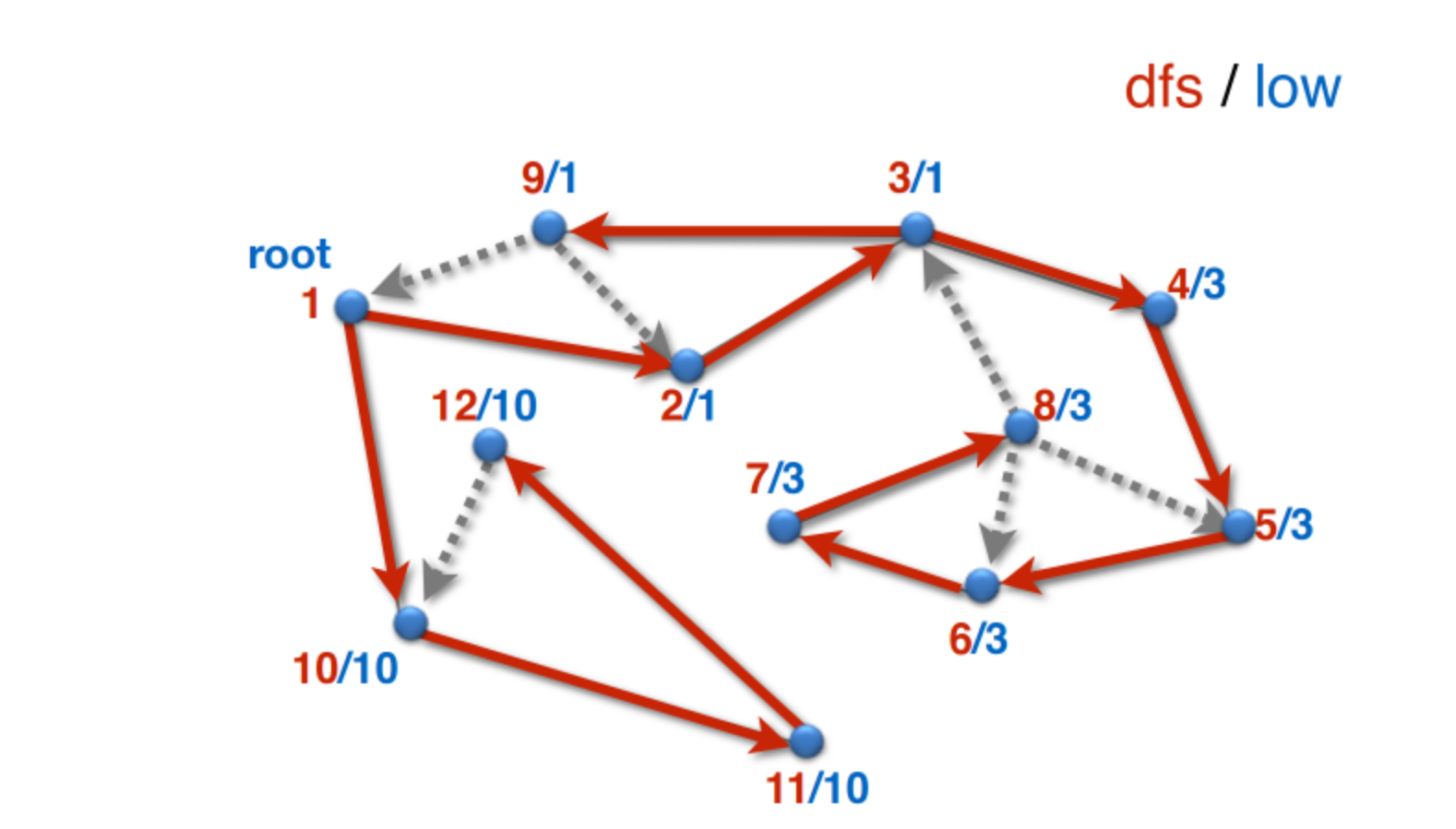

We first run the classical dfs algorithm (red edges and numbers)

Definition: The low number (blue numbers) of a vertex $v$, denoted as $\text{low}[v]$, is the smallest DFS number (the red numbers) reachable from $v$ by following:

• Any number of tree edges downward in the DFS tree (red edges).
• At most one back edge (grey edges).

Formally,

$$\text{low}[v]=\min \{\begin{array}{l}\text{dfs}[v]\\ {\min }_{(v,w)\in E}\{\begin{array}{ll}\text{dfs}[w]& \text{if }(v,w)\text{ is a back edge}\\ \text{low}[w]& \text{if }(v,w)\text{ is a tree edge}\end{array}\end{array}$$

---

Two Cases for Cut Vertices

1. $v$ is not the root of the DFS tree

Vertex $v$ is a cut vertex if and only if it has a child $u$ in the DFS tree such that:

$$\text{low}[u]\ge \text{dfs}[v]$$

2. $v$ is the root of the DFS tree

The root is a cut vertex if and only if it has at least two children in the DFS tree. This is because:

• If the root has only one child, removing the root does not disconnect the remaining subtree.
• If the root has multiple children, their subtrees become separate connected components when the root is removed.

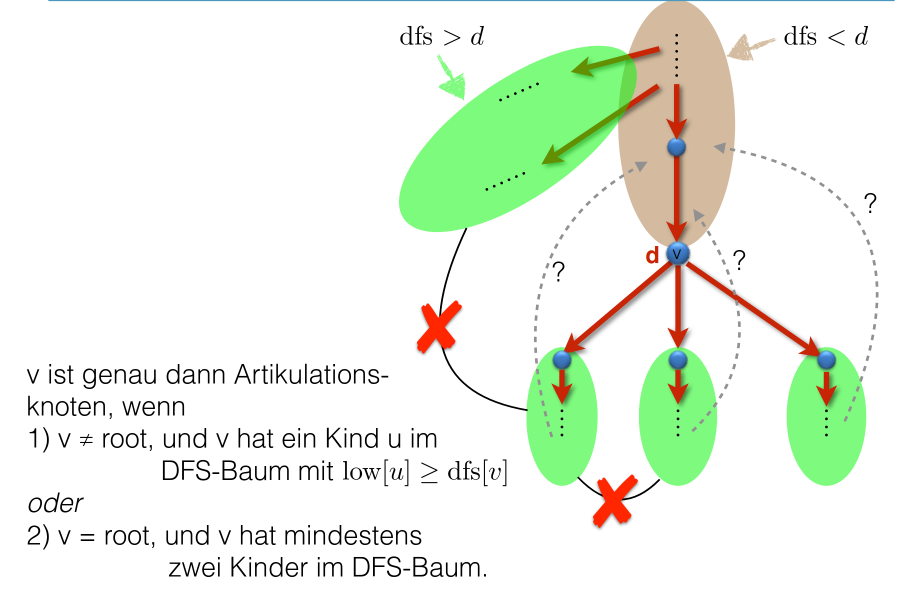

It’s easy to see that if $\text{low}[u]>\text{dfs}[v]$, then there could not exist a back edge from green (the bottom three) to brown vertices. If $\text{low}[u]=\text{dfs}[v]$, then there is a back edge from green (the bottom three) to $v$, in which case, $v$ is still a cut vertex.

---

Bridges

Let $(v,w)$ be a tree edge in the DFS tree, with $v$ being the parent of $w$. Then $(v,w)$ is a bridge if and only if:

$$\text{low}[w]>\text{dfs}[v]$$

can easily be checked by the graph above.
