Flow Network

Definition - Network

A Network is a tuple $(V,A,c,s,t)$ Let $G=(V,A)$ be a acyclic directed graph representing a network. A flow network has the following properties:

• Each edge $(u,v)\in A$ has a capacity $c(u,v)\ge 0$.
• There is a distinguished source vertex $s\in V$.
• There is a distinguished sink vertex $t\in V$, with $s\ne t$.

Think of the network as a system of pipes. The source $s$ pumps fluid in, and the sink $t$ collects the outflow.

Definition - Flow

A flow in the network is a function $f:V\times V\to \mathbb{R}$ satisfying the following conditions:

Capacity Constraint

For all $(u,v)\in E$,

$$0\le f(u,v)\le c(u,v)$$

Flow Conservation (except at source and sink)

For all $v\in V\setminus \{s,t\}$,

$$\sum _{u\in V}f(u,v)=\sum _{w\in V}f(v,w)$$

Skew Symmetry (convenience condition)

$$f(u,v)=-f(v,u)$$

This ensures that defining $f(u,v)$ for existing edges is sufficient — the reverse flow is implicitly determined.

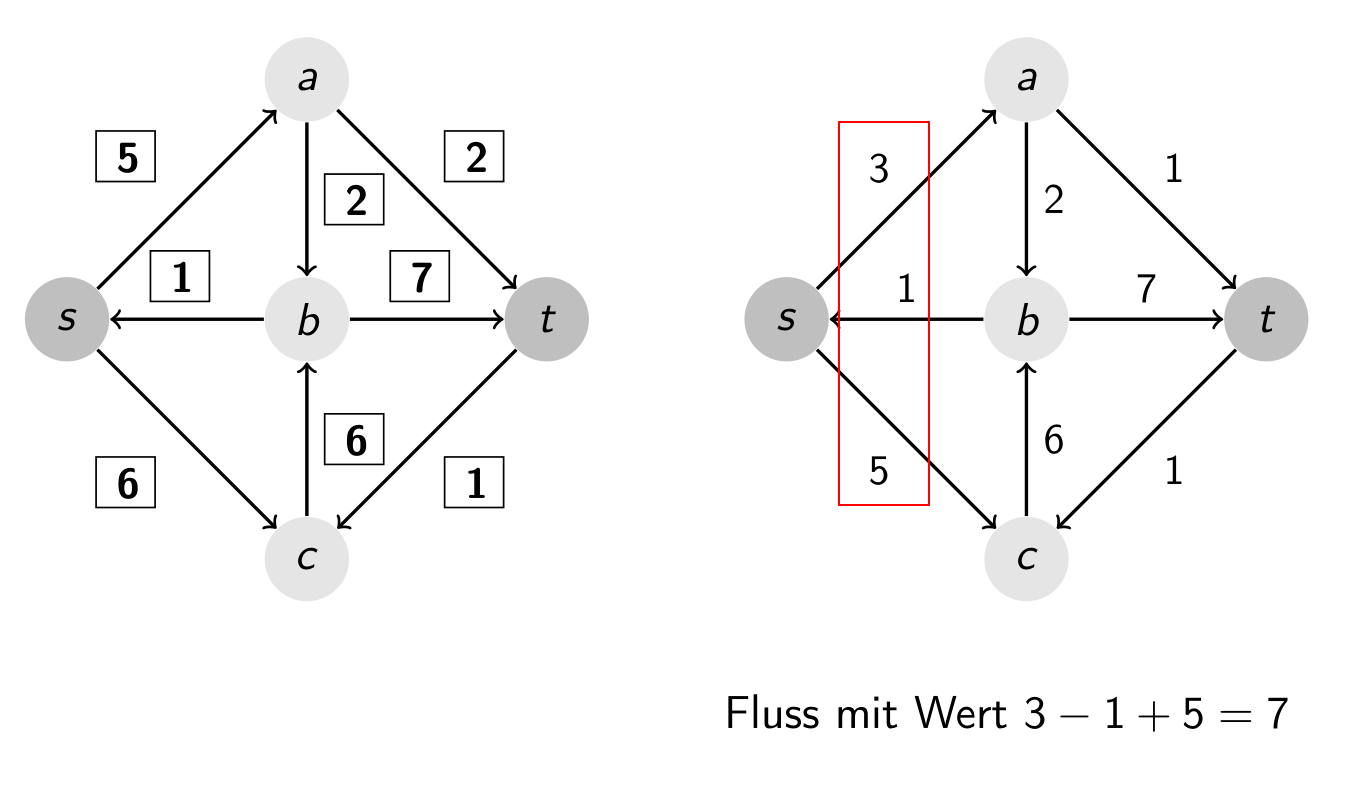

Example

Definition - Value

The value of a flow $f$ is defined as

$$\mathrm{val}(f):=\mathrm{netoutflow}(s):=\sum _{\begin{array}{c}u\in V\\ (s,u)\in A\end{array}}f(s,u)-\sum _{\begin{array}{c}u\in V\\ (u,s)\in A\end{array}}f(u,s).$$

Lemma

The net inflow of the sink $t$ equals the value of the flow, i.e.,

$$\mathrm{netinflow}(t):=\sum _{\begin{array}{c}u\in V\\ (u,t)\in A\end{array}}f(u,t)-\sum _{\begin{array}{c}u\in V\\ (t,u)\in A\end{array}}f(t,u)=\mathrm{val}(f)$$
