CMOS

CMOS=pMOS+nMOS

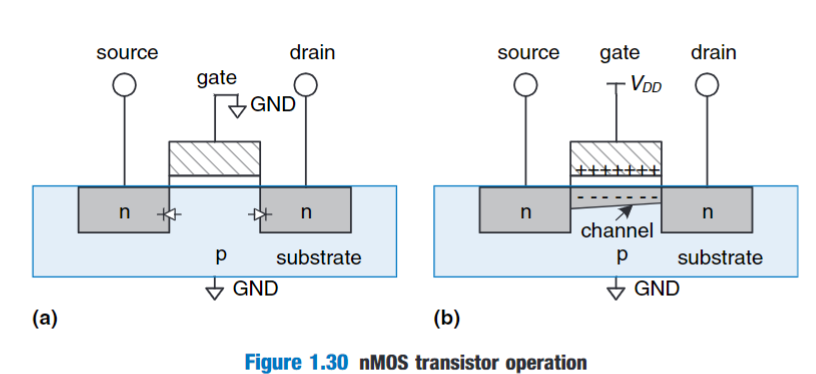

nMOS

good at passing logic 0

• gate=0: OFF
• gate=1: ON //good at passing 0 (pass GND)

pMOS

good at passing logic 1

• gate=0: ON //good at passing 1 (pass $V_{DD}$)
• gate=1: OFF

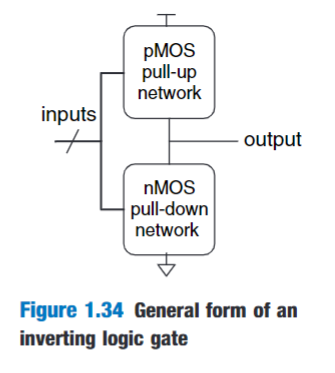

Inverting logic

always use pMOS for pull-up always use nMOS for pull-down

Warning

exactly one network should be ON, and the other network should be OFF at any given time

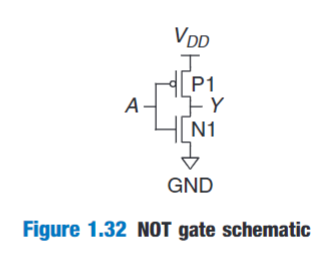

Example: NOT

Efficiency

NAND and NOR gates are more efficient than using AND and OR, since AND is built with NAND+NOT
