MIPS

MIPS is one concrete ISA used by MIPS processors.

MIPS is a classic RISC architecture, which means the instructions are designed to be simple and regular.

Different microarchitectures can implement the same MIPS ISA while preserving the same programmer-visible behavior.

Registers

MIPS has 32 general-purpose registers.

Some common ones are:

• $zero: always contains 0
• $t0-$t9: temporary registers
• $s0-$s7: saved registers
• $sp: stack pointer
• $ra: return address

Load/store architecture

MIPS is a load/store architecture:

• arithmetic instructions work only on registers
• memory is accessed only with load and store instructions

Examples:

• lw: load word from memory into a register
• sw: store word from a register into memory

Instruction formats

MIPS instructions are usually 32 bits long.

There are 3 important formats:

R-type

Used for register-register operations such as:

• add: adds the values in two registers and stores the result in a register
• sub: subtracts one register value from another and stores the result in a register
• and: performs a bitwise AND on two register values
• or: performs a bitwise OR on two register values

I-type

Used for immediate values and memory access such as:

• addi: adds a constant immediate value to a register
• lw: loads a 32-bit word from memory into a register
• sw: stores a 32-bit word from a register into memory
• beq: branches if the values in two registers are equal

J-type

Used for jumps:

• j: jumps unconditionally to a target address
• jal: jumps to a target address and saves the return address in $ra

Example instructions

add $t0, $t1, $t2
lw  $t0, 0($sp)
sw  $t1, 4($sp)
beq $t0, $t1, label
j   target

• add $t0, $t1, $t2: computes $t1 + $t2 and stores the result in $t0
• lw $t0, 0($sp): loads the word at address $sp + 0 into $t0
• sw $t1, 4($sp): stores the value in $t1 at address $sp + 4
• beq $t0, $t1, label: jumps to label if $t0 and $t1 are equal
• j target: jumps directly to target

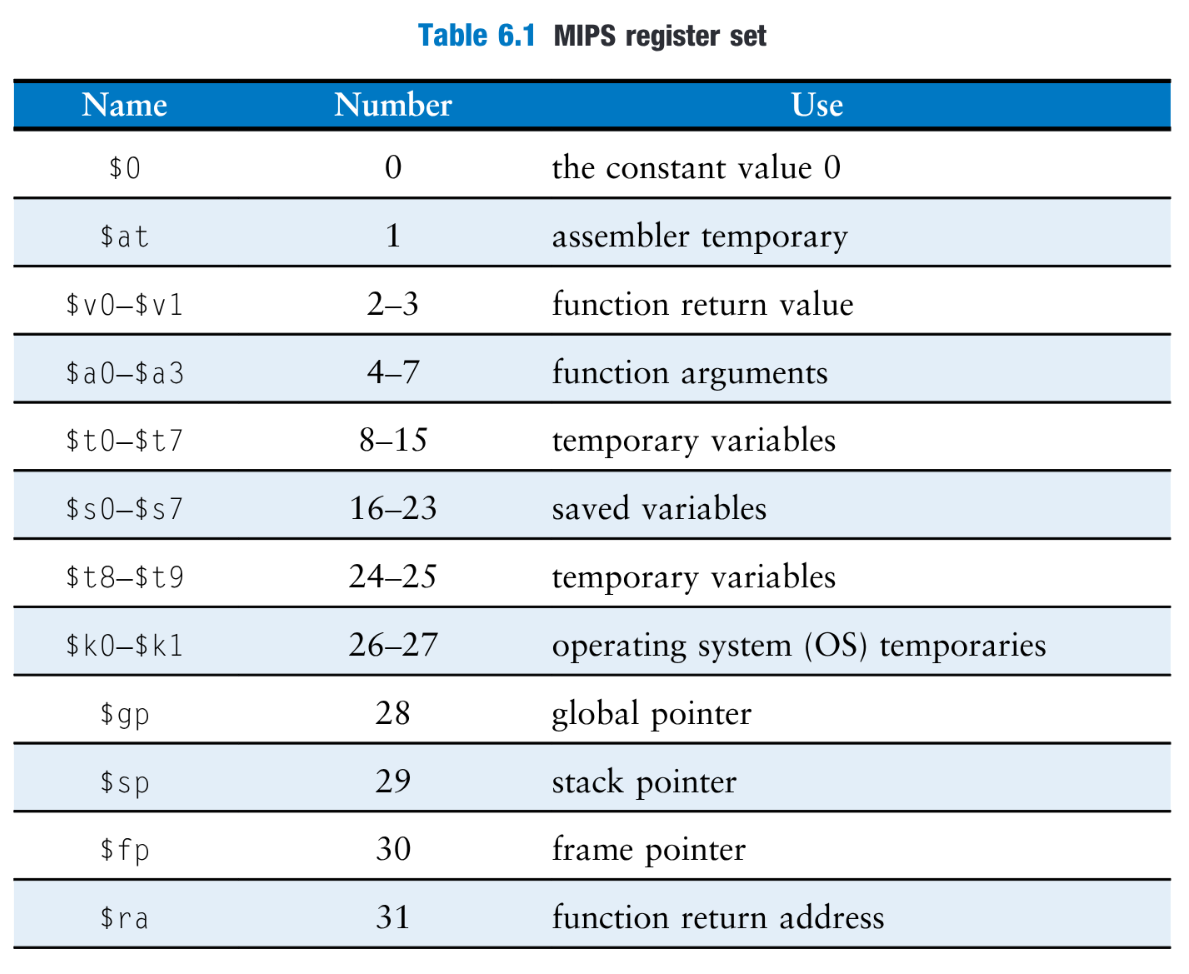

Registers
