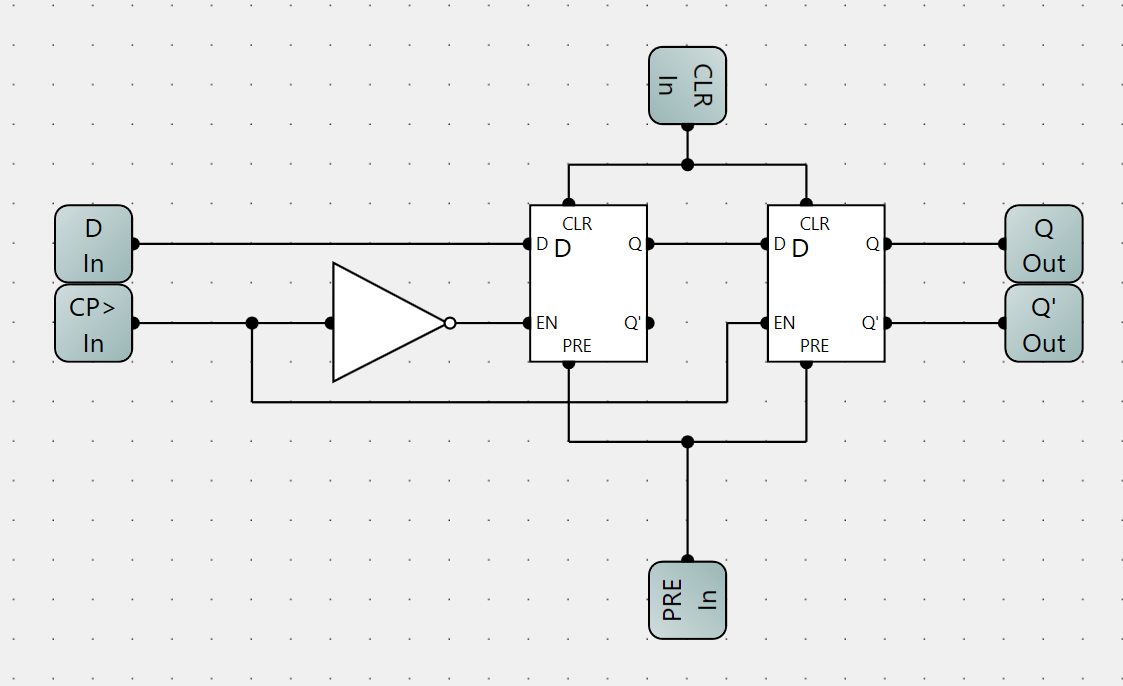

A D flip flop can be constructed from two Gated D Latch the first one is called master and the second one is called slave
<8Bits>
How the data is actually stored
Ignore PRE and CLR for the moment and focus only on D and CP.
Case 1: CP = 0
Because the master latch is driven by the inverted clock:
- so the master is enabled
- the slave is disabled
Master latch:
It continuously samples D and writes that value into its internal bistable storage.
Slave latch:
Since it is disabled, it keeps its previous value unchanged.
Clock changes from 0 -> 1
When the rising edge arrives:
- the master closes
- the slave opens
For the master:
Its input path is now cut off from D, but its internal feedback keeps the last sampled value.
For the slave:
Since it is now enabled, it reads the value currently stored in the master and copies it.
Therefore, Qout becomes the value that the master had just locked in
Case 2: CP = 1
Now:
- the master is disabled and holds its value
- the slave is enabled
So during the whole CP = 1 phase:
- the output remains stable
Clock changes from 1 -> 0
When the falling edge arrives:
- the slave closes and keeps the current output
- the master opens and starts tracking the new input
